Microsoft Dynamics CRM 2011 - Entity Relationship Diagram For SharePoint Entity Model

This Microsoft Office Visio 2010 diagram shows the logical entity relationship (logical database structure) for Microsoft Dynamics CRM 2011 - SharePoint Entity Model.

The logical relationships reflect the programming model for Microsoft Dynamics CRM 2011 - SharePoint Entity Model.

Entity Relationship Diagram For SharePoint Entity Model

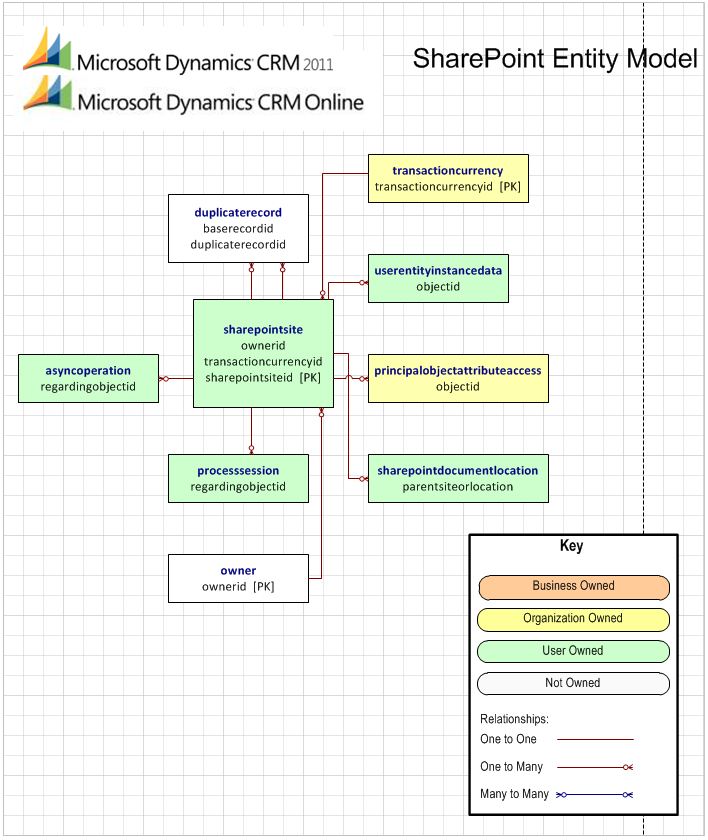

The Entity Relationship Diagram highlights the main entity "sharepointsite" and its relationship with "duplicaterecord", "transactioncurrency", "userentityinstancedata", "principalobjectattributeaccess", "sharepointdocumentlocation", "owner", "processsession" and "asyncoperation".
